In today’s rapidly developing new energy vehicles and energy storage power stations, the safety of battery packs, as the core power and energy storage units, is undoubtedly a focus of industry attention. Whether it’s factory testing by battery manufacturers or regular maintenance of energy storage power stations, a sophisticated testing system is essential to ensure the safety and reliability of battery packs. However, while focusing on the performance of the main equipment itself, have we overlooked a crucial connecting component–the high-voltage test harness? It may seem like just a simple wire, but it is actually the “lifeline” ensuring safety and data accuracy throughout the entire testing process. As a member of the industry, Guheng Energy understands that a high-quality high-voltage test harness is the cornerstone of accurately diagnosing the health status of battery packs.
Why High Voltage Test Harness is the “Core Hub” of Safety Inspection
The “highway” of signal transmission
The essence of battery pack testing is the acquisition and interpretation of signals. Even slight deviations in key parameters such as voltage, current, and internal resistance can lead to misjudgments of the battery’s condition. High-voltage test harnesses are responsible for transmitting signals from the battery pack to the testing equipment without loss or interference. If this “highway” is of substandard quality, the signal will attenuate or be subject to electromagnetic interference during transmission, leading to distorted test data. The consequences are serious: a defective product that should be rejected might be deemed acceptable and enter the market, posing a significant safety hazard to end users.
Guheng Energy deeply understands the importance of signal integrity. Our high-voltage test harnesses use high-quality conductors and are equipped with multi-layer shielding to effectively resist external electromagnetic interference, ensuring that test data is presented to you with “original quality” accuracy, providing the most reliable basis for your quality decisions.
The “First Line of Defense” Against Safety Risks
Battery packs operate at voltages of hundreds of volts, and testing is fraught with risks. Inferior or ordinary cables are easily damaged under this high voltage, causing short circuits, arcing, and even serious accidents such as electric shock and fire. High-voltage test harnesses are the first and most direct physical safety barrier between high voltage and operators and equipment.

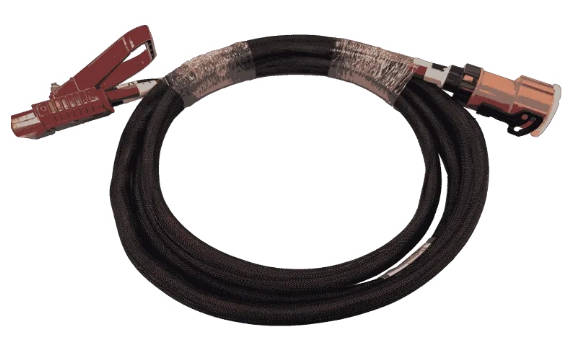

Guheng Energy prioritizes safety above all else in its high-voltage test harnesses. We select specialized insulation materials with extremely high dielectric strength and withstand voltage ratings. For example, our Type 1 high-voltage test harness undergoes rigorous insulation performance verification, enabling it to withstand extreme voltage challenges and ensuring safe operation for every test.
How do Guheng Energy’s high-voltage test harnesses ensure safe testing?
Ultimate Safety: High-Voltage Resistance and Durable Design

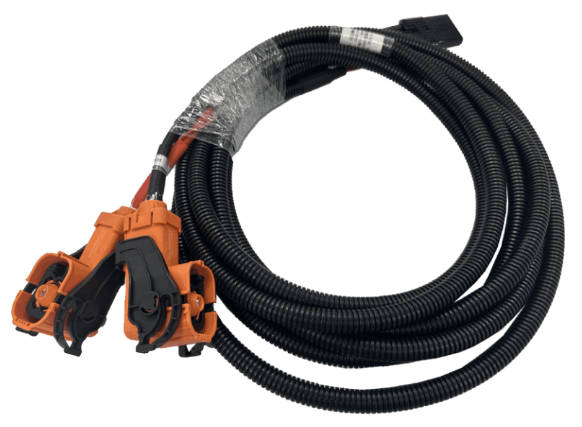

Safety begins with materials and is refined through craftsmanship. Guheng Energy’s high-voltage test harnesses, such as the Type 2 high-voltage test harness, feature a corrugated outer protective layer that provides excellent mechanical protection. The material itself is flame-retardant and anti-aging. For connectors, we use high-quality brands like Harding (such as the aluminum shell H10B-TSH-RO-PG29 and the plastic shell HDD-042-FC) to ensure smooth insertion and removal, stable contact resistance, and eliminate the risk of arcing and overheating due to poor contact.
Exceptional Adaptability to Harsh Environments

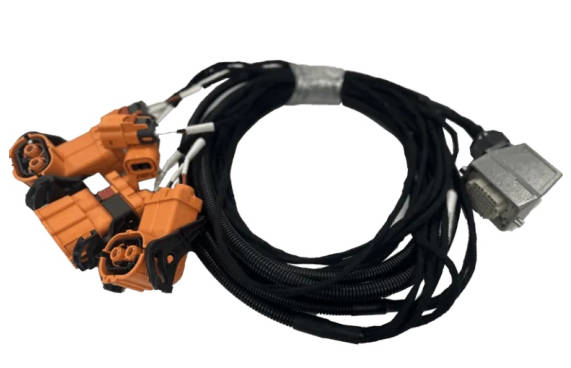

Testing environments are never static. Oil and chemical reagents on battery factory production lines, and the harsh outdoor environments of energy storage power stations with their exposure to sun, rain, and fluctuating high and low temperatures, all pose stringent challenges to the harnesses. Guheng Energy’s Type 3 high-voltage test harness was designed with these complex conditions in mind from the outset. The harness itself has a wide operating temperature range, the outer sheath material is oil and corrosion resistant, and it provides a high level of protection, ensuring stable and reliable long-term operation in both clean rooms and field sites.
Reliability Derived from Rigorous Testing
Trust stems from verification” is Guheng Energy’s product philosophy. We have established testing procedures for our high voltage test harnesses that far exceed industry standards. Each batch of harnesses undergoes comprehensive testing, including high and low temperature cycling tests, repeated bending tests, salt spray corrosion tests, and the crucial high-voltage withstand test (HIPOT). This means that every Guheng Energy wiring harness you receive is a high-quality product, rigorously tested and proven, with solid data supporting its stability and lifespan.
What fatal risks can choosing an inappropriate test wiring harness pose?
For battery manufacturers, an unreliable test wiring harness can lead to batch misjudgments. Allowing potentially defective battery packs to enter the market often results in costly recalls and irreparable damage to brand reputation. Frequent wiring harness failures can also directly cause production line downtime, disrupting production schedules and causing significant economic losses.
For energy storage power station operators, the risks are even more direct. When maintaining and testing megawatt-level battery packs, inferior wiring harnesses are like a hidden “bomb.” Failure under high voltage can trigger a chain reaction, threatening the assets and operational safety of the entire power station. Furthermore, distorted test data cannot accurately reflect battery health, leading to inappropriate maintenance strategies, accelerated system degradation, and increased total lifespan costs.
How to choose a professional high-voltage test wiring harness for your battery pack?
Making the right choice is crucial in the face of a dazzling array of products on the market. We suggest you consider the following points:
- Define your needs: First, define your maximum test voltage/current, daily plugging/unplugging frequency, and primary operating environment (indoor/outdoor).
- Evaluate key indicators: Focus on the wire harness’s insulation class, protection rating (IP), shielding effectiveness, and cable flexibility.
- Choose a partner: Price should not be the only criterion. Choosing a supplier like Guheng Energy, with independent R&D capabilities, a complete testing system, and extensive industry experience, is the long-term safety and efficiency choice.
Conclusion
Guheng Energy is committed to providing the safest and most reliable testing tools and solutions for the new energy industry. We offer services ranging from standardized products to fully customized wire harness solutions, perfectly adaptable to your unique equipment interfaces and application scenarios. Choosing the right high-voltage test wire harness adds a solid layer of insurance for your product quality and operational safety. Feel free to contact us anytime to inject peace of mind and accuracy into your testing system.
FAQ
Q: What is the difference between a high-voltage test wire harness and ordinary wires?
A: The difference is significant. Ordinary electrical wires cannot withstand the high voltage and high current required for battery pack testing. Their insulation and shielding performance are far from sufficient to meet requirements, easily leading to inaccurate data and safety accidents such as insulation breakdown. Guheng Energy’s high-voltage test harnesses are specifically designed for harsh testing environments, with fundamental differences in materials, processes, and safety standards.
Q: Why are Guheng Energy’s high-voltage test harnesses more durable?
A: Our durability stems from our relentless pursuit of excellence in materials and processes. From the highly elastic, wear-resistant corrugated outer sheath to the high-quality conductors and plated connectors, every aspect is designed for durability. Simultaneously, we implement rigorous bending, high and low temperature, and aging tests to ensure that the product maintains stable performance over a long period even with frequent use.
Q: What are the special requirements for test harnesses in the outdoor environment of energy storage power stations?
A: Outdoor environments require harnesses to have extremely strong environmental adaptability. They need a high protection rating (such as IP67) for waterproofing and dustproofing; they need to withstand ultraviolet radiation, wide temperature variations (such as -40℃ to 125℃), and certain chemical corrosion. Guheng Energy’s outdoor series of wiring harnesses are designed specifically to address these pain points, ensuring safe and reliable testing even in harsh environments.
Q: Can Guheng Energy provide customized high-voltage test harness solutions?
A: Absolutely. Customization is one of our core strengths. We can tailor-make a perfectly matched high-voltage test wiring harness for you based on your equipment interface type, required harness length, voltage and current rating, and specific operating environment, ensuring seamless integration with your equipment and improving testing efficiency and safety.
