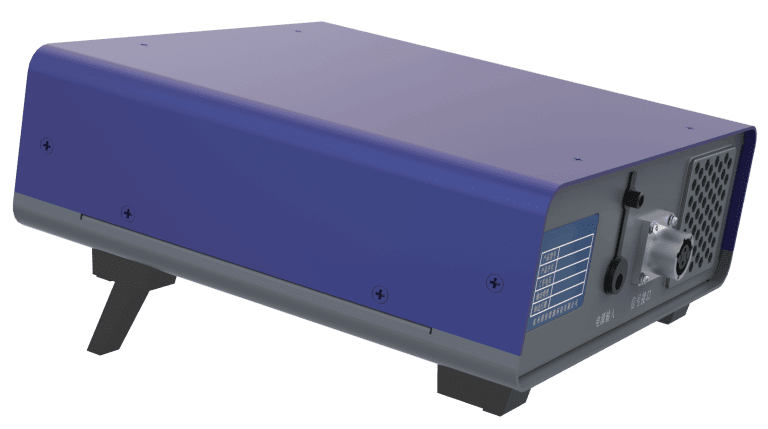

The RDT series battery pack DC impedance tester is used to test the DC impedance of the entire battery module or battery box in a group state and the DC impedance of a single string of batteries. The device can accurately and quickly test the corresponding DC impedance, that is, the change of battery status and connection status, providing a strong basis for judging the health status of battery modules and battery boxes and eliminating the potential safety hazards caused by increased connection impedance.
Multi-string testing – supports DC impedance testing of up to 12 strings of cells and modules, covering a wide range of application scenarios.
Voltage uniformity test – can simultaneously test the voltage and uniformity of up to 12 battery strings to ensure consistent overall performance.
Accurate Algorithm – Using advanced algorithm model to ensure high accuracy and repeatability of internal resistance test results.
Touch color screen – Equipped with a touch color display, the operation is intuitive and convenient, improving the user experience.
Long-lasting battery life – Built-in efficient power management system supports long-term continuous operation and is suitable for various field use.
Information Entry – Easily enter battery pack ID and related information for easy management and tracking.
Data Storage – Test data can be stored locally and exported for easy analysis and recording.
Portable Design – Compact and lightweight, easy to carry to different sites for use, improving work efficiency.
| Brand: Guheng Energy | Support processing customization: Yes | Supply voltage: 12V | Supply current: 2A |
| Voltage detection channel; 1-12 | Impedance measurement accuracy: ± (3% RD + 25uΩ) | Group terminal voltage detection: 60V (MAX: 80V) | Group terminal voltage accuracy: ± (0.02% RD + 0.02% FD) |
| Cooling method: air cooling | Human-machine interface: 4.3-inch touch screen | Dimensions: 245mm*220mm*90mm (length*width*height) |
Place of shipment: Hangzhou |
