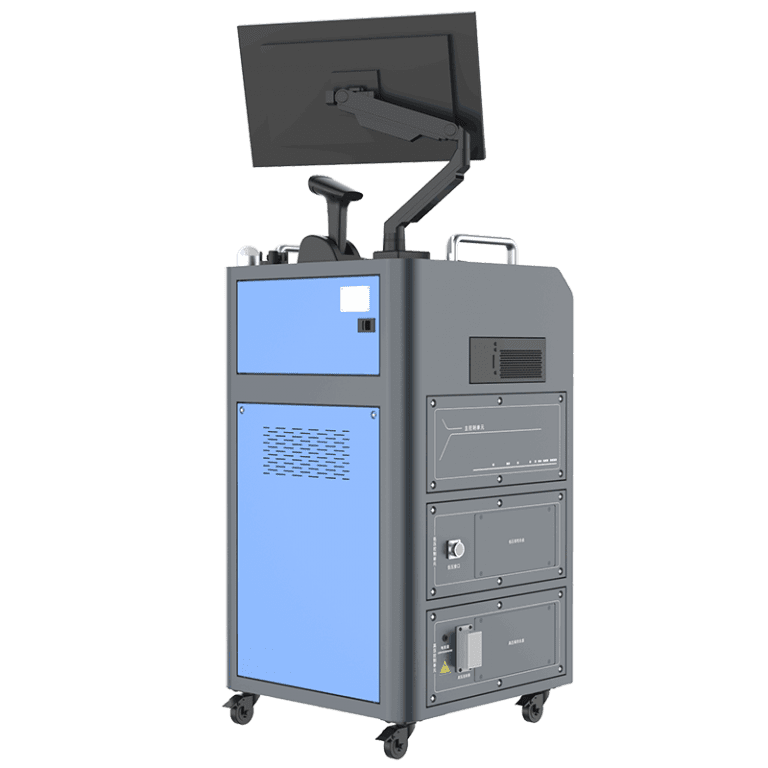

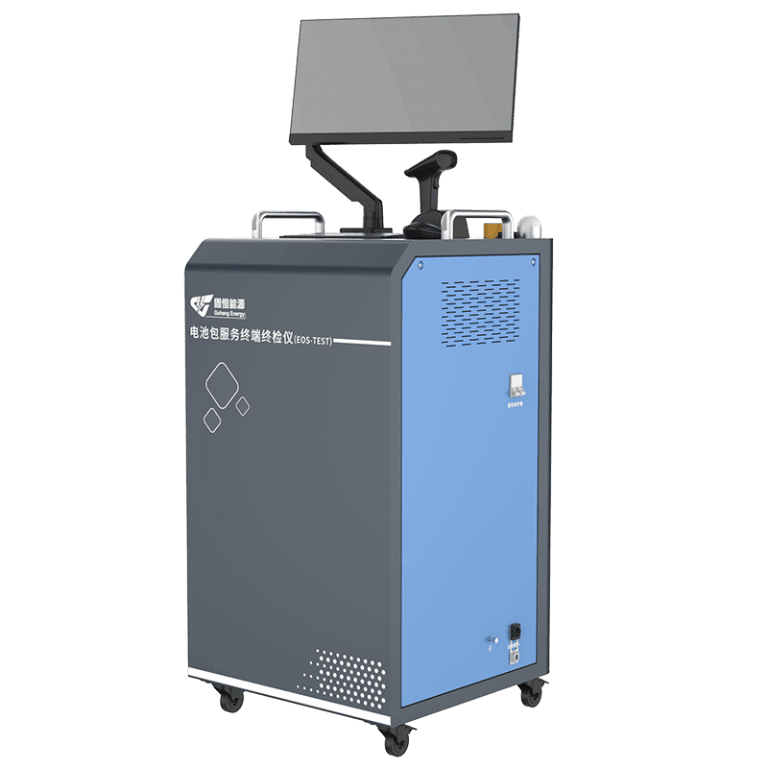

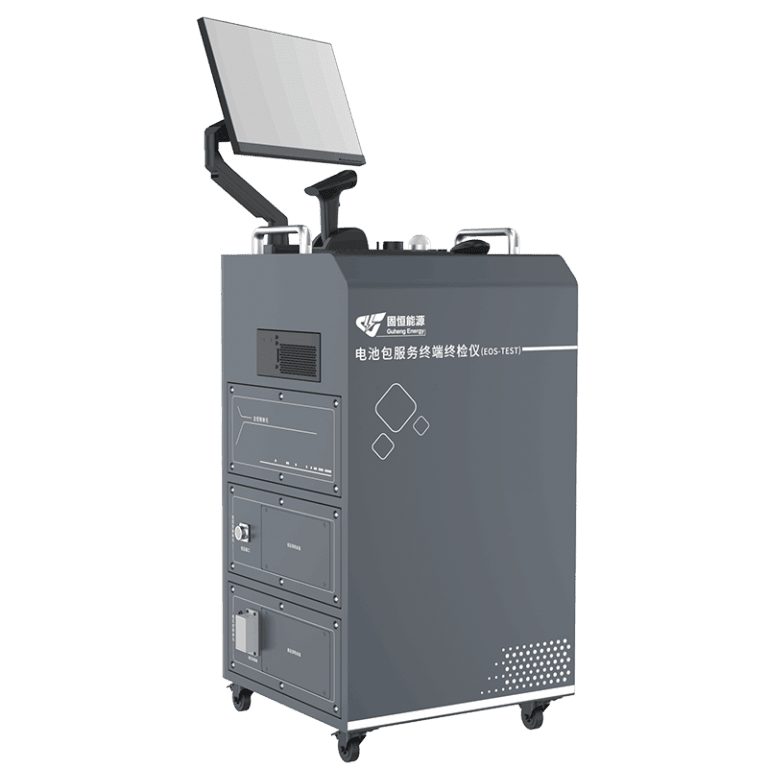

The battery pack service terminal functional final tester (EOS TEST) performs fault diagnosis, maintenance, and testing of whether the functional performance of new energy vehicle battery packs meets the commissioning requirements at the service terminal (service station). It also complies with the terminal service process, generates data and related test reports, and supports uploading to the cloud. It is a low-cost, highly integrated intelligent device developed to adapt to service terminal scenarios, thereby reducing the operating costs of the service terminal and reducing the dependence on the skills and sense of responsibility of the operating technicians, while ensuring the consistency and integrity of the maintenance service quality.
Multiple Compatibility – Supports SN information entry of multiple battery pack models to meet the diverse needs of different customers.
Smart Scanning – Quickly scan the battery pack SN wirelessly and automatically match the best test solution to simplify the operation process.
Safety Testing – Comprehensive testing of short circuit, insulation and interlocking of high voltage ports to ensure safety during use.
Relay Test – Perform functional tests on the high voltage relays in the battery pack to ensure the reliability of the circuit control system.
Energy Consumption Monitoring – Accurately measure power consumption of low-voltage system power supplies to help users optimize energy management.
Temperature Control Verification – Thermal management system performance test to ensure stable operation of the battery under various temperature conditions.
Charging Simulation – Simulate fast and slow charging signals and monitor them in real time to ensure the safety and efficiency of the charging process.
BMS Diagnosis – Detailed reading of BMS status information (such as self-test, balancing, etc.) to provide users with a comprehensive health report.
Communication test – Multi-channel CAN bus communication capability test to ensure smooth data transmission.
Data Archiving – Test results are saved locally, and pictures and airtightness test records can be added for easy reference later.
Report Generation – Automatically generate report files containing all key parameters and can be directly printed out.
Permission Control – Set operator access rights to enhance the security and privacy of device use.
| Brand: Guheng Energy | Input voltage: 1 10/ 220Vac | – P WM Channel: 2 | Voltage measurement range: ≤1000V |
| Resistance measurement range: ≤10M | Insulation resistance measurement range: 0.01MΩ~1GΩ | Voltage acquisition accuracy: ±0.2%FS | Insulation resistance accuracy: ±3%RD±1%FS |
| Current acquisition accuracy: ±0.5%FS | Size: 600*552*1470mm | Place of shipment: Hangzhou |
The battery pack service terminal functional final tester (EOS TEST) performs fault diagnosis, maintenance, and testing of whether the functional performance of new energy vehicle battery packs meets the commissioning requirements at the service terminal (service station). It also complies with the terminal service process, generates data and related test reports, and supports uploading to the cloud. It is a low-cost, highly integrated intelligent device developed to adapt to service terminal scenarios, thereby reducing the operating costs of the service terminal and reducing the dependence on the skills and sense of responsibility of the operating technicians, while ensuring the consistency and integrity of the maintenance service quality.
Multiple Compatibility – Supports SN information entry of multiple battery pack models to meet the diverse needs of different customers.
Smart Scanning – Quickly scan the battery pack SN wirelessly and automatically match the best test solution to simplify the operation process.
Safety Testing – Comprehensive testing of short circuit, insulation and interlocking of high voltage ports to ensure safety during use.
Relay Test – Perform functional tests on the high voltage relays in the battery pack to ensure the reliability of the circuit control system.
Energy Consumption Monitoring – Accurately measure power consumption of low-voltage system power supplies to help users optimize energy management.
Temperature Control Verification – Thermal management system performance test to ensure stable operation of the battery under various temperature conditions.
Charging Simulation – Simulate fast and slow charging signals and monitor them in real time to ensure the safety and efficiency of the charging process.
BMS Diagnosis – Detailed reading of BMS status information (such as self-test, balancing, etc.) to provide users with a comprehensive health report.
Communication test – Multi-channel CAN bus communication capability test to ensure smooth data transmission.
Data Archiving – Test results are saved locally, and pictures and airtightness test records can be added for easy reference later.
Report Generation – Automatically generate report files containing all key parameters and can be directly printed out.
Permission Control – Set operator access rights to enhance the security and privacy of device use.
| Brand: Guheng Energy | Input voltage: 1 10/ 220Vac | – P WM Channel: 2 | Voltage measurement range: ≤1000V |
| Resistance measurement range: ≤10M | Insulation resistance measurement range: 0.01MΩ~1GΩ | Voltage acquisition accuracy: ±0.2%FS | Insulation resistance accuracy: ±3%RD±1%FS |
| Current acquisition accuracy: ±0.5%FS | Size: 600*552*1470mm | Place of shipment: Hangzhou |
