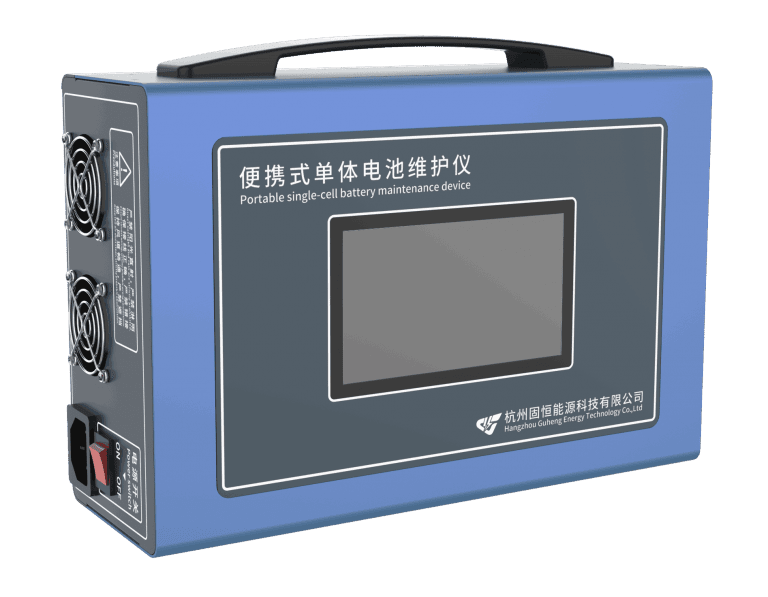

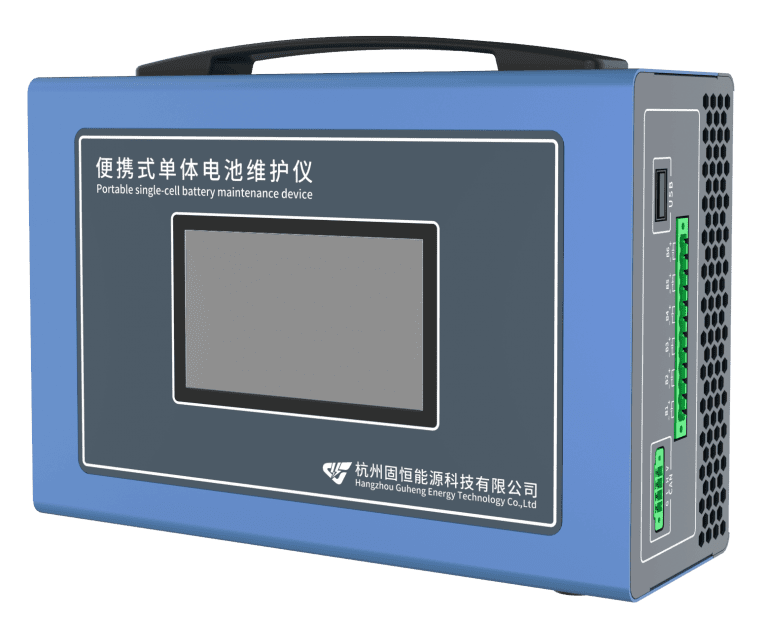

The FBU-SF series portable single-cell battery maintenance instrument consists of multiple independent charging and discharging channels, each channel has positive and negative two-wire output acquisition and power sharing. The fully functional controlled charging and discharging module corresponds to the single cell, and adopts a proprietary charging and discharging control technology to ensure the charging and discharging requirements of the single cell, and realize the real-time online health management and adjustment of the lithium battery, thereby greatly improving the power.
Smart Cut-off – Intelligently set voltage, capacity or time cut-off to ensure battery safety and efficient maintenance.
Accurate measurement – Calculates the cumulative charge/discharge power with high precision, provides detailed power management information, and controls every bit of energy.
Consistent results – Proprietary maintenance control strategy ensures highly consistent maintenance results each time, significantly extending battery life.
Accurate monitoring – The power line and sampling line are designed separately to achieve real-time and accurate tracking of the battery terminal voltage, regardless of slight changes.
Easy Operation – The simple and intuitive operation interface is easy to learn and understand, and even novices can quickly get started and enjoy a smooth experience.
Multiple protections – Multiple protection mechanisms and redundant designs effectively resist abuse and improve device reliability and safety.
Rugged and durable – The design is highly resistant to abuse, ensuring the equipment can work stably in various harsh environments and reducing the occurrence of failures.
| Brand: Guheng Energy | Support processing customization: Yes | Mains input voltage: 110/220Vac | Mains input frequency: 50/60Hz |
| Constant current output: 0.5~20A (adjustable) | Cut-off voltage: 1.5~4.5 (adjustable) | Current acquisition accuracy: ±100mA | Voltage acquisition accuracy: ±2mV |
| Number of output channels: 16 | Applicable batteries: lithium batteries, sodium batteries, etc. | Dimensions: 624*293*626mm (host length*width*height) | Place of shipment: Hangzhou |
