The Pain Points of Welding, the Necessity of Transformation
In today’s rapidly developing new energy vehicle and energy storage industries, battery packs, as core energy units, directly determine the safety, lifespan, and cost of end products through their manufacturing quality. Among these processes, the welding of connecting pieces inside the battery module—whether aluminum or nickel strips—is a crucial step in cell assembly. However, for a long time, many manufacturers have still heavily relied on manual experience for positioning and welding in gantry battery welding rooms. This traditional model is not only inefficient but also suffers from positioning deviations and poor welding consistency due to human factors, becoming a core pain point restricting capacity improvement and yield stability.

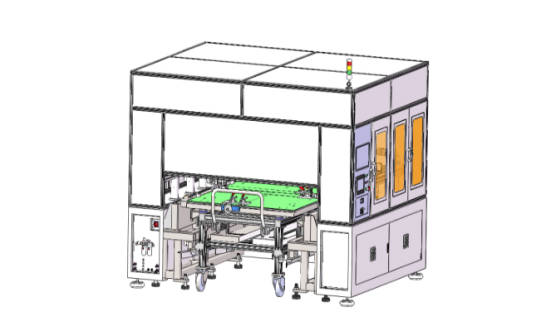

As a professional manufacturer with over a decade of experience in the field of new energy service technology, Guheng Energy deeply understands the precision welding challenges facing the industry. Leveraging our deep understanding of processes and accumulated technical expertise, we have integrated an advanced CCD vision system into our gantry welding machine. With intelligent welding at its core, we have launched the GSC-60CWD2-B model gantry battery welding booth, dedicated to helping customers overcome the challenges of manual positioning and ushering in a new era of efficient, precise, and reliable flexible production.
Saying Goodbye to “By Feel”: The Precision Dilemma of Traditional Battery Welding
Traditional gantry battery welding operations largely rely on the operator’s “eyesight” and “feel.” Faced with battery packs of different sizes and polarities, workers need to manually adjust the tooling and align the welding points. This operating mode presents several insurmountable obstacles:
- Low and unstable positioning accuracy: The human eye is easily fatigued under high-intensity repetitive labor, leading to large fluctuations in alignment accuracy and frequent problems such as weld misalignment and incomplete welds.
- Poor process consistency: Welding results are difficult to standardize between different shifts and different operators, ultimately resulting in unstable product batch quality and potential problems for subsequent use.
- Production efficiency bottlenecks: Frequent workpiece clamping, manual alignment, and debugging consume a significant amount of production time, failing to meet the demands of large-scale, fast-paced delivery.
- High overall costs: Low yield rates lead to material waste, rework costs, and reliance on highly skilled welders, placing a heavy cost burden on the company.
Smart Eyes: How CCD Vision Systems Reshape the Welding Process
To fundamentally address these pain points, Guheng Energy has deeply integrated machine vision technology into our gantry battery welding room, completely transforming the traditional welding operation mode by equipping the welding machines with “smart eyes.”
Precise Positioning: A Leap from “Blurred” to “Clear”
Our GSC-60CWD2-B gantry battery welding room is equipped with an automated CCD (dual-head) vision system. This system uses a high-resolution industrial camera to acquire real-time images of the battery terminals and connectors before welding. Advanced image processing algorithms can quickly and accurately identify target feature points of the weld. Even with minute material deviations in the workpiece, the system can intelligently compensate, achieving positioning accuracy far exceeding human limits. This truly represents a leap from “fuzzy estimation” to “sub-millimeter level precise positioning.”
Automatic Deviation Correction: Real-time Compensation Ensures Perfect Weld Alignment
Even more intelligently, this battery welding CCD vision system possesses real-time monitoring and deviation correction capabilities. During high-speed operation of the galvanometer-type (dual-head) welding head, the system can simultaneously capture the welding area. Once a trajectory deviation caused by thermal deformation or minute vibrations is detected, it instantly calculates the compensation value and guides the laser beam to adjust its landing point in real time, ensuring that each weld perfectly falls on the preset path. This represents an intelligent upgrade from “open-loop control” to “closed-loop feedback.”
In-depth Analysis: The Intelligent Core of Guheng Energy’s Gantry Welding Room
Guheng Energy’s GSC-60CWD2-B gantry battery welding room is not merely an isolated piece of equipment, but a complete production unit integrating intelligent sensing, precision control, and flexible manufacturing. Its intelligent core is reflected in the following aspects:
Intelligent Recognition: Practical Application of CCD Vision in Battery Welding
In actual production, our system performs exceptionally well with battery packs of different brands and specifications. It can automatically identify the characteristics, position, and angle of aluminum bars and nickel sheets, and automatically match the optimal welding parameters. The entire process requires no manual intervention, greatly simplifying the production preparation process while improving welding precision to the micron level, eliminating the uncertainty brought by manual operation from the source.
Flexible Production: One-Click Switching, Adapting to Multiple Battery Module Specifications
Faced with the increasingly diverse battery pack models on the market, flexible production capability has become a key measure of equipment value. Our equipment, through the integration of CCD vision and digital control systems, and equipped with adjustable battery pack trolleys and operating carts adaptable to battery packs of various sizes, truly achieves flexible production with “one-click switching.” When production tasks change, the equipment can automatically call the preset welding program, and the vision system automatically adapts to the new workpiece characteristics. Production can be quickly resumed without complex mechanical adjustments, greatly improving production line response speed and overall equipment utilization.
Precision and Consistency: Ensuring Superior Quality in Every Weld
The core value of intelligent welding lies in ensuring superior process consistency. Thanks to the precise positioning and real-time correction of the dual-head automatic CCD vision system, our gantry battery welding room can ensure the simultaneous welding of aluminum bars and nickel sheets during long-term, high-volume production, with each weld seam exhibiting highly consistent position, penetration depth, and appearance. This stable and reliable welding precision not only improves the conductivity and safety redundancy of battery modules but also gives end products stronger market competitiveness.
Value Leap: Production Transformation Brought by Intelligent Welding
Introducing Guheng Energy’s intelligent gantry battery welding room brings more than just improvements to the welding process; it brings a leap in overall manufacturing capabilities:
- Quality Leap: Significantly improved welding yield and better product consistency strongly support the brand image of high-end manufacturing.
- Increased Efficiency: Automatic positioning and simultaneous dual-head operation significantly reduce production auxiliary time. Combined with a 6KW/1.5KW (customizable) laser power, this doubles production capacity.
- Cost Optimization: Reduced reliance on skilled welders and material waste due to welding defects significantly lower overall manufacturing costs.
- Environmentally Friendly: Integrated automatic dust extraction and gas protection effectively improve the workshop working environment, ensure metallurgical quality in the welding area, and reduce spatter and fumes.
Conclusion: Towards the Future of Unmanned Welding
From “experience-based” to “data-based,” from “manual positioning” to “machine vision,” Guheng Energy is driving a profound transformation in new energy battery manufacturing processes with its leading CCD vision technology and intelligent welding solutions. We firmly believe that precise, efficient, and consistent automatic positioning and flexible production are not only the key to solving current production pain points but also the inevitable path to a future of unmanned and intelligent factories. Choosing Guheng Energy means choosing to walk alongside a more reliable and efficient future.
Want to equip your gantry battery welding room with “intelligent eyes,” completely eliminating the challenges of manual positioning and achieving a leap in welding quality and efficiency? Contact us now to learn more about Guheng Energy’s intelligent welding equipment. Let’s work together to build a high-quality future for battery manufacturing!
FAQ
Q: Will the CCD vision system be affected by strong arc light and fumes during welding?
A: Guheng Energy’s automatic CCD (dual-head) system uses special optical filtering components and advanced image processing algorithms to effectively shield against arc light, spatter, and fumes generated during welding, ensuring stable and clear image acquisition under any working conditions for precise positioning.
Q: Can this system adapt to welding battery packs of different brands and specifications? For example, switching from prismatic to pouch cells?
A: Absolutely. This is precisely the flexible production advantage we emphasize. Our system, through preset visual templates and welding programs, and in conjunction with an adjustable battery pack trolley, can quickly switch between different battery models, easily handling the welding needs of aluminum and nickel sheets for various battery modules, including prismatic, pouch, and cylindrical types.
Q: Is this equipment complex to operate? Are the requirements for frontline workers high?
A: The equipment is very user-friendly. Ordinary workers can issue commands and monitor the equipment’s operation status through the human-machine interface after simple training. Complex process parameter settings and the establishment of the visual template library are completed by our process engineers upon equipment delivery, greatly reducing the technical threshold for frontline operators.
Q: What level of welding precision and efficiency can this equipment achieve?
A: Our equipment is designed with a welding operating surface of 2500mm × 2000mm (length × width), employing a precision operation mode of a 3-axis gantry + dual welding heads. Combined with CCD vision positioning, its repeatability can be stably maintained within ±0.1mm. Simultaneous operation of both heads, combined with the high-speed scanning characteristics of the galvanometer, significantly improves welding efficiency compared to traditional single-head equipment.
