Introduction: The Overlooked “Air Bubbles,” the “Invisible Killer” of Liquid Cooling System Efficiency
In high-tech fields such as energy storage power stations, electric vehicles, and data centers, liquid cooling systems have become the “lifeline” for ensuring the stable operation of core equipment. Their heat dissipation efficiency is a key factor affecting the performance, lifespan, and safety of battery packs or servers. However, in this closed liquid circulation network, a seemingly insignificant problem—air bubbles—often becomes the “invisible killer” of system efficiency. The “air blockage” caused by these difficult-to-remove air bubbles is a persistent problem plaguing the entire industry.
As a provider of new energy technology solutions, Guheng Energy understands this well and is committed to solving this pain point through innovative tools. This article delves into how Guheng Energy’s insertion-type gas injection fixture acts like a precise surgeon, performing a “lung cleansing operation” on the liquid cooling system, completely solving the problem of precise air degassing.
In-depth Analysis: The Significant Dangers of “Air Bubbles” in Liquid Cooling Systems
The presence of air bubbles is far more than just an aesthetic concern; it brings a series of chain reactions and negative effects.
Local Overheating and Thermal Runaway Risks
When air bubbles become trapped in the liquid cooling plate channels, especially on critical heat dissipation surfaces in contact with the battery cells, they create localized “heat dissipation blind spots.” Heat in these areas cannot be dissipated in time, leading to abnormally high battery cell temperatures. Prolonged localized overheating accelerates battery cell performance degradation, and in extreme cases, this heat accumulation can become a contributing factor to thermal runaway, posing a serious threat to the safety of the entire system.
Hidden Losses in System Performance and Energy Efficiency
Air bubbles alter the hemodynamic characteristics of the coolant, increasing its circulation resistance in complex piping. This means the cooling pump needs to consume more power to maintain a given flow rate, directly increasing system energy consumption. Simultaneously, due to uneven heat dissipation, the overall temperature control consistency of the system deteriorates. To cater to the hottest spots, the system may have to reduce power operation or increase cooling fan speed, resulting in hidden losses in overall performance and energy efficiency.
Limitations and Challenges of Traditional Venting Methods
Traditional venting methods primarily rely on gravity-driven natural venting or prolonged circulation, which is not only time-consuming and labor-intensive but also highly dependent on operator experience. For complex liquid cooling systems, high points and bends in the piping are prone to forming “air pockets,” which are difficult to reach with traditional methods, often leading to incomplete venting and potentially introducing new air or contaminants during operation due to poor sealing of interfaces.
Core Technology Revealed: How Guheng Energy’s Insertion-Type Gas Injection Tool Achieves Precise Venting
Addressing the industry pain point of “air blockage,” Guheng Energy, leveraging its strong independent R&D capabilities, has launched an insertion-type gas injection tool specifically designed to solve the venting problems of liquid cooling systems. It is not just a tool, but a precise and efficient solution.
Innovative Two-in-One Design: Perfect Integration of Plug and Gas Injection Functions

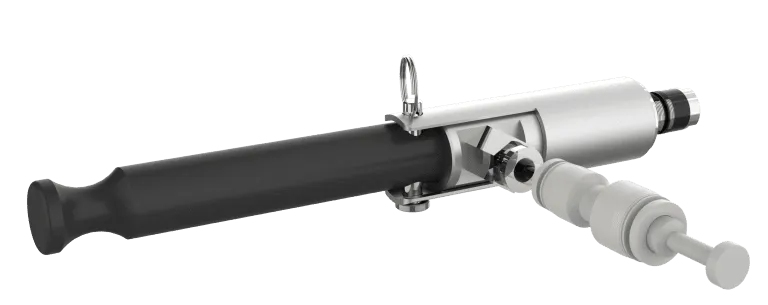

Unlike traditional tooling, Guheng Energy’s tool innovatively combines the plugging and gas injection functions into one. This design is particularly efficient when performing airtightness testing and maintenance of battery pack liquid cooling pipes. When operating on specific piping specifications, the tooling can be directly inserted into liquid-cooled pipes with inner diameters ranging fromΦ11.8 toΦ16.5. Firstly, it acts as a high-performance sealing plug, quickly establishing a closed testing or maintenance environment. Subsequently, without changing tools, subsequent gas injection or evacuation operations can be performed through its standardΦ8 gas connector (specific ranges can be customized to customer needs). This integrated design greatly simplifies the workflow, reduces tool changes, effectively improves maintenance efficiency, and reduces operational complexity.
Professional Customization and Modular Architecture
We understand the differences in various application scenarios; therefore, one of the core features of Guheng Energy tooling is “1-to-1 professional customization.” We ensure that each tooling set is precisely adapted to the customer’s specific interfaces and operating conditions, guaranteeing operational accuracy and sealing reliability from the source.
Simultaneously, the product adopts an advanced modular architecture design. This means that when certain components (such as sealing rings) become vulnerable due to long-term use, it is not necessary to replace the entire tooling; only low-cost maintenance and replacement of core components are required, significantly reducing the user’s long-term maintenance costs.
Precise Control for Directional Exhaust
This tooling plays a crucial role in actual exhaust operations. Through its precise interface, maintenance personnel can:
- Directional Injection: Inject controllable clean gas into the system, using precise airflow to push and guide the “gas bag” and dispersed air bubbles towards the designated exhaust port.
- High-Efficiency Extraction: Connecting to vacuum equipment, it directly generates negative pressure at critical points, powerfully extracting stubborn air bubbles.
Its optimized 182mm length provides ample operating space, enabling flexible operation even in compact spaces such as battery packs.
Application Scenarios and Value: Why Guheng Energy Tooling is the Industry’s Preferred Choice
Widely Used in Various Closed Liquid-Cooled Systems
Whether it’s the battery thermal management clusters of large energy storage containers, the maintenance of electric vehicle power battery packs, or the liquid-cooled cabinets of high-performance data center servers, wherever there is a risk of closed liquid-cooling circuits and air blockage, Guheng Energy’s insertion-type gas injection tooling can excel.
Core Value for Production and Operation & Maintenance
- Improved Production Efficiency: At the end of the production line, it can reduce system liquid injection and venting time from several hours using traditional methods to tens of minutes after using this tool, significantly improving off-line efficiency.
- Enhanced Operation & Maintenance Safety: During regular power plant maintenance, using this tool in conjunction with diagnostic tools such as the Guheng Energy battery pack internal resistance tester to first detect battery packs with deteriorating consistency, and then performing precise venting maintenance, can effectively reduce the risk of downtime due to heat dissipation problems.
- Extended System Lifespan: By maintaining the system in optimal heat dissipation condition, it fundamentally protects core assets such as batteries, extending their lifespan and creating long-term value for customers.
Conclusion: Choose Guheng Energy, choose reliable assurance for liquid cooling system maintenance
“Air blockage” may seem small, but it poses a huge hidden danger. In the new energy era that pursues ultimate efficiency and safety, no detail can be ignored. Guheng Energy’s insertion-type gas injection, with its precise, efficient, and reliable characteristics, provides a brand-new solution for the maintenance of liquid cooling systems. We not only provide a single tool, but also a complete maintenance philosophy. When used in conjunction with Guheng Energy’s safety testing equipment, it can build a comprehensive maintenance system for your liquid cooling system, from “diagnosis” to “treatment.” Choosing Guheng Energy means choosing reliable “performance insurance” for your critical equipment.
FAQ
Q: Why do air bubbles form in liquid cooling systems and are difficult to completely remove?
A: Air bubbles mainly originate from air entrained during coolant filling, trace amounts of liquid vaporization during system operation, and component leaks (air intake). In complex, closed piping systems, air bubbles tend to accumulate at high points, bends, and other “air pockets.” Traditional methods relying on gravity-based natural venting or simple circulation are insufficient to reach these dead zones, making complete removal extremely difficult.
Q: Will using this tooling cause damage or contamination to my existing liquid cooling system?
A: Absolutely not. Guheng Energy tooling prioritizes safety from the outset. It employs high-specification sealing materials and filtration devices to ensure that external contaminants are not introduced into the system during air injection or extraction. Meanwhile, its precise pressure control function strictly maintains the operating pressure within the system’s safe threshold, preventing damage to pipelines and components from overpressure or underpressure.
Q: Is this fixture compatible with all brands and models of liquid cooling systems?
A: Guheng Energy’s insertion-type gas injection fixture features a modular and adapter design, offering broad compatibility. By changing different interface adapters, it can interface with the standard interfaces of most mainstream liquid cooling systems on the market. To ensure optimal results, we recommend providing your specific system model; our technical team will confirm compatibility and provide a customized one-on-one adaptation solution.
