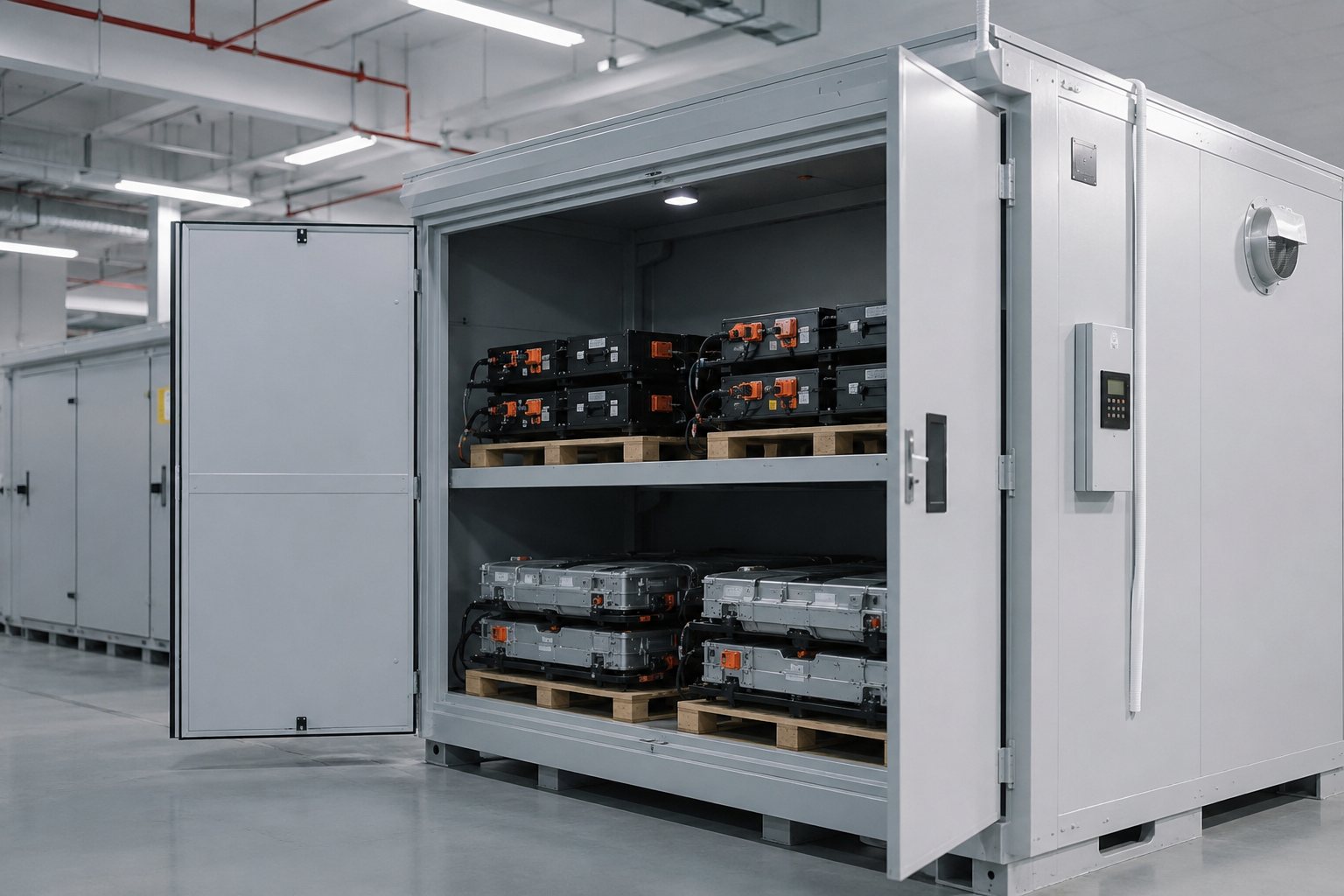

With the rapid development of the global new energy industry, the installed base of power batteries has exploded. This trend has not only driven innovation in battery technology but also imposed stringent safety and compliance requirements on downstream storage, maintenance, and recycling processes. Traditional warehousing methods are no longer adequate to address the unstable chemical characteristics of lithium-ion batteries. Building a professional and compliant battery storage environment has become paramount for companies to mitigate asset risks and ensure personnel safety.
Why has the safety of power battery storage become a core aspect of corporate compliance?
Traditional shelving storage methods have significant safety blind spots when dealing with power batteries. Power batteries are highly susceptible to thermal runaway when subjected to compression, overcharging, short circuits, or excessively high ambient temperatures, releasing large amounts of heat and toxic hydrogen fluoride gas. Ordinary warehouses lack specific pressure relief measures and automatic fire suppression mechanisms; once a single battery cell experiences thermal runaway, it often spreads rapidly throughout the entire storage area, causing incalculable losses.
Current industry standards clearly stipulate that power battery storage must have physical isolation, temperature monitoring, and professional fire protection capabilities. When optimizing their power battery storage solutions, companies must consider the stability of batteries at different states of charge (SOC).
How to construct a multi-dimensional protection system for power battery safety storage cabinets?
How can the cabinet frame and fire-resistant materials achieve fire resistance integrity for more than 90 minutes?

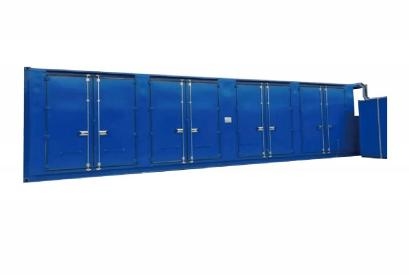

In extreme fire scenarios, structural strength is the first line of defense against the spread of disaster. Guheng Energy’s power battery safety storage cabinet uses high-strength steel as its frame. This structure not only provides robust load-bearing capacity but, more importantly, boasts a fire resistance integrity of over 90 minutes. This means that in the event of an external fire or internal battery fire, the cabinet can maintain its structural integrity for a critical hour and a half, preventing collapse or penetration, thus buying precious time for external firefighting and rescue efforts.
How does an intelligent environmental control system precisely adjust the battery storage environment?

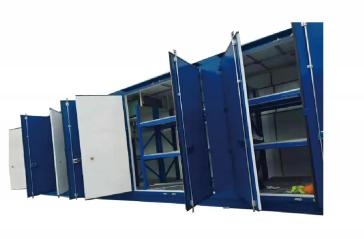

An optimized battery storage environment is much more than just providing physical space.
- Explosion-proof air conditioning system: In response to the temperature sensitivity of lithium batteries, an industrial-grade explosion-proof air conditioning system keeps the internal temperature within a safe range, effectively suppressing the chemical reaction rate of active materials.
- Ventilation system: continuously regulates the air inside the box to prevent the accumulation of flammable gas and reduce the risk of explosion.
- Steel liquid storage tray: The bottom of the cabinet is equipped with a liquid storage tray with an anti-corrosion coating, which is specially used to collect any leaked electrolyte and prevent chemical contamination from spreading outside the cabinet.
How can we improve the safety protection level of batteries through technical details?
What role do explosion-proof air conditioners and ventilation devices play in temperature management?
During the storage of power batteries, even minor temperature fluctuations can trigger a chain reaction. The explosion-proof air conditioning system inside the dedicated storage cabinet provides 24/7 uninterrupted temperature control, ensuring the battery modules are in optimal static condition. The ventilation system is linked to internal gas concentration sensors, providing periodic or on-demand air exchange. Furthermore, the optional battery compartment temperature monitoring system enables real-time monitoring at a single point, issuing early warnings via a backend platform in the initial stages of thermal runaway.
How do pressure relief valves and automatic drainage devices cope with extreme fire alarm situations?
When the internal pressure rises rapidly due to battery venting, a specially designed pressure relief valve will automatically open to release the instantaneous pressure and prevent a structural explosion of the cabinet. Simultaneously, Guheng Energy ‘s power battery safety storage cabinet is equipped with a fire alarm and closed-loop fire sprinkler system as standard. Once a fire is detected, the system will immediately issue an audible and visual alarm and activate the fire sprinkler system. To address the issue of water accumulation from the fire sprinkler system, the cabinet is equipped with an automatic drainage device to ensure that fire-fighting water is discharged in an orderly manner, preventing secondary electrical short circuits or secondary environmental disasters.
How does Guheng Energy optimize the battery storage environment in real-world applications?
How do well-known automakers’ after-sales service stations utilize dedicated cabinets to achieve closed-loop management?
In practical applications, after-sales service stations of several well-known automakers (such as Tesla and NIO partners) have introduced the safety protection equipment from Guheng Energy. For battery packs awaiting repair or posing safety hazards, mobile power battery emergency handling boxes or fixed safety storage cabinets can physically seal off potential risks. These devices not only have IP65 waterproof and 0.5MPa explosion-proof performance, but also support video monitoring, allowing technicians to monitor battery status without approaching the source of risk, significantly improving workshop safety management.
How do companies that reuse and recycle power batteries handle the storage of high-risk batteries?
For companies engaged in the reuse and remanufacturing of batteries, the performance of recycled battery modules varies considerably. Before being processed by the module re-sorting system, batteries typically need to be left to stand for extended periods. Guheng Energy’s power battery safety storage cabinets are equipped with multi-layered battery storage racks, significantly improving space utilization. Simultaneously, through an integrated monitoring data chain, the operational data of each cabinet is uploaded to the cloud. This digital management approach makes the storage process of high-risk assets transparent and traceable, fully aligning with the regulatory logic of modern green energy supply chains.
Conclusion
Optimizing battery storage environments is more than just purchasing a cabinet; it’s a systematic project involving safety technology and compliance. With over a decade of technological expertise in new energy testing and protection, Guheng Energy provides industry-leading protection solutions to global clients through key technological details such as fire resistance time, explosion-proof systems, automatic fire suppression, and digital monitoring . Choosing a professional power battery safety storage cabinet is not only a responsibility to corporate assets but also a safeguard for the lives of every frontline worker.
Secure your operations today. Contact Guheng Energy for a professional consultation.
FAQ
Q: How to handle electrolyte leakage inside a power battery safety storage cabinet?
A: The storage cabinet is equipped with a dedicated steel electrolyte tray at the bottom, coated with a professional anti-corrosion coating. This design ensures that highly corrosive electrolytes are safely collected, preventing them from corroding the cabinet frame or contaminating the external battery storage environment.
Q: Is an explosion-proof air conditioner necessary in a battery storage environment?
A: Yes. Temperature is the core factor inducing thermal runaway in power batteries. Guheng Energy’s power battery safety storage cabinets are equipped with explosion-proof air conditioners as standard or optional, which can regulate the internal air to a constant temperature, significantly reducing the risk of battery spontaneous combustion caused by ambient temperature rise from a physical source.
Q: Does Guheng Energy’s storage solution support video monitoring and remote alarms?
A: Supported. In addition to basic fire alarms with sound and light, Guheng Energy’s equipment can be optionally equipped with video surveillance and remote battery compartment temperature monitoring. This data can be linked to the backend platform to achieve 24/7 risk awareness in unattended scenarios, further optimizing the company’s power battery storage safety management.
